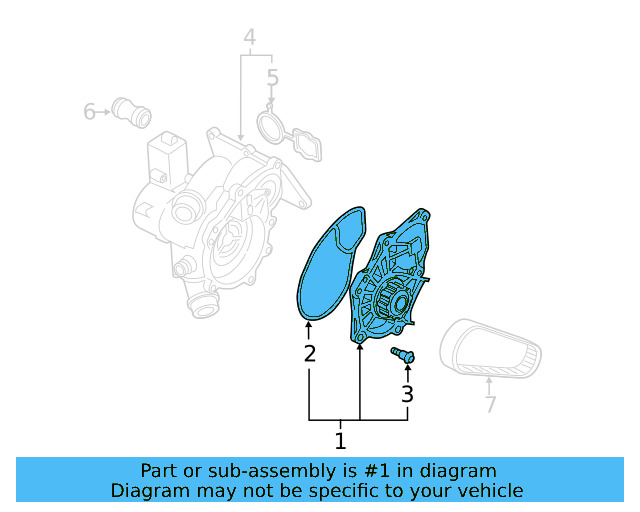

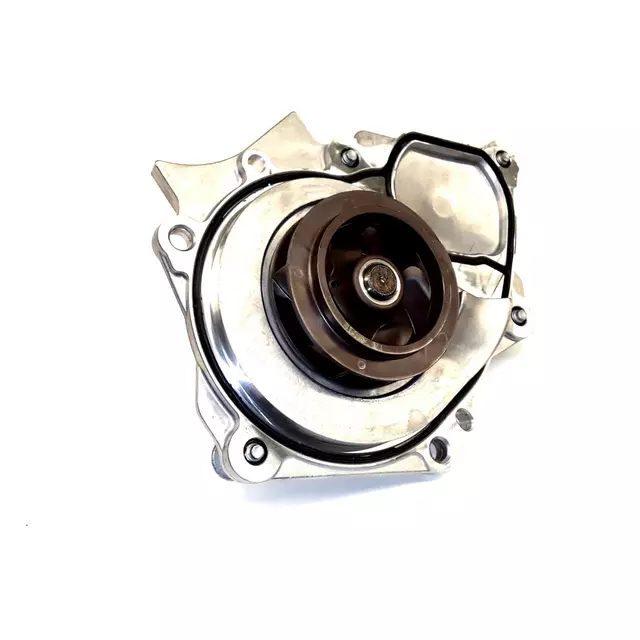

Engine Water Pump 06L-121-012-L
When the water pump starts to fail, symptoms may include overheating, coolant leaks, or unusual noises from the engine bay. Neglecting these signs can lead to severe engine damage, costly repairs, or even complete engine failure if not addressed promptly.
Choosing an OEM engine water pump with part number 06L-121-012-L guarantees superior quality and a design that aligns with the original engineering standards. This part is engineered for optimal integration into the cooling system, reducing the risk of premature failures seen with generic alternatives.
Available in Stores
| Seller | Price | Action |
|---|---|---|
|
Volkswagen
New
|
$250 $179 | |
|
Reydel VW of Linden
New
|
$233 $210 | |
|
ABParts
New
|
— |
| Seller | Price | Action |
|---|---|---|
|
Infoparts13.com.ua
Used
|
$101 | |
|
Mega Market Auto
Used
|
$95 | |
|
A20 Разборка
Used
|
$69 |
| Seller | Price | Action |
|---|---|---|
|
Volkswagen of Downtown L.A.
New
|
$53 $41 |
| Seller | Price | Action |
|---|---|---|
|
ww_ECCOPARTS_eu
Used
|
$43 | |
|
ASO_VW_AUDI
New
|
$90 | |
|
ww_ECCOPARTS_eu
Used
|
$43 |
Vehicle Fitment
Vehicles confirmed compatible with this part
Technical Specifications
| OEM Part Number | 06L-121-012-L |
|---|---|
| Part Type | Water Pump Assembly with Thermostat |
| Material | Aluminum |
| Includes | Pump body, pulley, gasket, integrated thermostat |
| Brand Group | Volkswagen Group (VAG) |
| Compatible Brands | Audi, Volkswagen, Škoda, SEAT, Cupra, Porsche |
| Supersedes | 06K-121-011, 06L-121-012-A, 06L-121-012-H, 06L-121-012-K (and others) |
| Dimensions | — |
| Torque Specification | Consult vehicle service manual for precise values |
The assembly combines the water pump and thermostat unit into a single component, simplifying replacement and ensuring factory-matched thermal regulation.
Built from aluminum for lightweight durability and efficient heat dissipation, matching original factory specifications for long-term reliability.
Includes the pump gasket and pulley hardware so no additional sealing components are needed for a correct, leak-free installation.
Compatible Aftermarket Alternatives
The following aftermarket parts are confirmed direct equivalents for OEM 06L-121-012-L, cross-referenced from major manufacturer catalogs.
| Manufacturer | Part Number | Notes | Dimensions (mm) |
|---|---|---|---|
| Pierburg / Hella | 7.07152.29.0 | OE-supplier quality; Pierburg is a Tier-1 OEM supplier to VAG. Strong fitment confidence and widely available. Recommended | — |
| Pierburg / Hella | 7.07152.37.0 | Secondary Pierburg reference; verify engine code fitment against 7.07152.29.0 before ordering. | — |
| Valeo | 529621 | Reputable Tier-1 OEM supplier; good quality alternative with broad VAG coverage. | — |
| Febi Bilstein | 102495 | German aftermarket brand with solid OEM-spec build quality; cost-effective option. | — |
| Rein | WPL0057 | North American aftermarket option; confirm exact variant (WPL0057/58/59) against vehicle engine code. | — |
| Rein | WPL0058 | Alternate Rein fitment variant; cross-check engine code before ordering. | — |
| Rein | WPL0059 | Third Rein fitment variant covering select engine code applications. | — |
Always verify fitment against your VIN before ordering.
How to Replace the Engine Water Pump
Replacing the 06L121012L water pump on VAG vehicles is a moderately complex job that requires draining the cooling system and removing engine ancillaries to gain access. Always consult the factory service manual for torque specifications and engine-specific procedures before beginning work.
-
Safety Preparation
Disconnect the negative battery terminal and allow the engine to cool completely. Place the vehicle on a level surface and, if required, safely raise and support it on jack stands to access underbody components.
-
Drain the Cooling System
Place a drain pan beneath the radiator drain plug or lower radiator hose. Open the drain and allow all coolant to drain fully. Dispose of used coolant according to local regulations — do not reuse contaminated fluid.
-
Remove Obstructing Components
Remove the engine top cover, accessory drive belts, and any ancillary components blocking access to the water pump. On many VAG EA888 engines this may include the timing belt or chain cover — follow the engine-specific service manual sequence carefully.
-
Remove the Old Water Pump
Unbolt the water pump mounting bolts and carefully withdraw the pump assembly. Note the orientation of the pump and the locations of all fasteners. Disconnect any coolant hoses attached directly to the pump housing.
-
Clean the Mating Surface
Thoroughly clean the engine block mating surface using a gasket scraper and lint-free cloth, removing all traces of the old gasket material. A clean, flat surface is critical for a leak-free seal with the new pump gasket.
-
Install the New Water Pump
Position the new 06L121012L pump assembly with the supplied gasket in place. Hand-thread all mounting bolts first, then torque them to the specification listed in the vehicle service manual using a calibrated torque wrench. Reconnect all coolant hoses.
-
Reassemble and Refill
Reinstall all previously removed components in reverse order. Refill the cooling system with the VW-approved coolant type and mixture ratio specified for your vehicle. Bleed any air from the system using the designated bleed points.
-
Start Engine and Inspect
Reconnect the battery, start the engine, and allow it to reach operating temperature. Observe the coolant temperature gauge, check the pump area and all hose connections for leaks, and verify the heater produces warm air confirming proper coolant circulation.
Signs of a Worn Part
-
Coolant Leaks Near Pump
Visible coolant pooling or weeping around the water pump housing or gasket area indicates seal failure or a cracked pump body requiring immediate replacement.
-
Engine Overheating
A failing impeller or seized pump shaft reduces coolant flow, causing the coolant temperature gauge to rise abnormally or the engine overheating warning to illuminate.
-
Grinding or Whining Noise
Worn or failing water pump bearings produce a grinding, whining, or rumbling noise from the front of the engine that increases with engine speed.
-
Steam from Engine Bay
Steam rising from under the hood is a sign of coolant boiling due to severely restricted or absent coolant circulation — stop driving immediately to prevent engine damage.
-
Heater Blowing Cold Air
Insufficient coolant circulation caused by a degraded pump impeller can reduce or eliminate heat output from the cabin heater even when the engine is fully warmed up.
Replacement Intervals
Volkswagen does not specify a mandatory mileage-based replacement interval for this water pump. Many technicians recommend replacing the water pump at the same time as a timing belt or chain service to avoid repeat labor costs, as access to the pump requires significant disassembly either way.
Frequently Asked Questions
Is 06L-121-012-L the latest supersession and will it replace older part numbers like 06K-121-011?
Yes. The 06L-121-012-L is the current superseding OEM part number and is confirmed to replace 06K-121-011, 06K-121-011-B, 06K-121-011-C, 06K-121-011-D, 06L-121-012-A, 06L-121-012-H, and 06L-121-012-K. Always confirm final fitment using your vehicle's VIN or engine code with a dealer parts system.
Which aftermarket brand is the best alternative to the OEM part?
Pierburg (distributed by Hella) is the recommended aftermarket choice because Pierburg is a Tier-1 OEM supplier to Volkswagen Group, meaning their parts are manufactured to OEM specifications. Part numbers 7.07152.29.0 and 7.07152.37.0 are the relevant Pierburg references — verify which applies to your engine code.
Does this water pump assembly include the thermostat and gasket?
Yes. The 06L121012L assembly includes the integrated thermostat unit, pump gasket, and pulley, making it a complete replacement kit. You should not need to purchase a separate thermostat or gasket when using the OEM assembly.
How do I confirm this part fits my specific vehicle before ordering?
Match the part number to your vehicle's engine code, which is stamped on the engine block and also listed on your vehicle identification sticker. Because multiple VAG models and engine variants share similar-looking pumps, using the VIN with a dealer or specialist online catalog is the safest verification method.
Can I replace the water pump myself, or does it require a professional?
This is a moderately complex repair requiring coolant drainage, removal of engine ancillaries, and potentially timing system components depending on the engine variant. It is suitable for experienced DIY mechanics with the correct torque specifications from the factory service manual. If you are unfamiliar with VAG cooling or timing systems, professional installation is strongly recommended.
What coolant should I use when refilling after the water pump replacement?
Use the VW/Audi-approved coolant specified for your vehicle — typically G13 (purple) or G12++ (pink) concentrate, mixed with distilled water at the ratio specified in your owner's manual. Mixing incompatible coolant types can cause corrosion and degrade pump seals, so always check your model year's specific coolant specification before refilling.
