Rear Bumper And Door Cup Paint Protection 5NL-061-193
Neglecting this protective layer can lead to visible damage and rust formation. Common signs that it needs replacement include peeling, discoloration, or noticeable wear. Without proper protection, the underlying surfaces become exposed to more severe damage and costly repairs.
Choosing the OEM part with number 5NL-061-193 guarantees a perfect match to the original design and material standards. This replacement part is specifically engineered to fit seamlessly, providing superior protection compared to generic options that may not adhere properly or wear out quickly.
Available in Stores
| Seller | Price | Action |
|---|---|---|
|
Leith Volkswagen
Official Dealer
|
— |
| Seller | Price | Action |
|---|---|---|
|
Capitol Volkswagen
New
|
$80 | |
|
Volkswagen
New
|
— |
| Seller | Price | Action |
|---|---|---|
|
Winn Volkswagen Woodland Hills
New
|
— |
Vehicle Fitment
Vehicles confirmed compatible with this part
Technical Specifications
| OEM Part Number | 5NL061193 |
|---|---|
| Material | High-quality transparent, untextured film |
| Finish | Clear / transparent |
| Texture | Untextured |
| Adhesive Type | Self-adhesive backing |
| Coverage Areas | Rear bumper loading edge and door handle cups |
| Vehicle Compatibility | Volkswagen Tiguan MQB 2018–2021 (2.0T Gen3, 4Motion & FWD) |
| Dimensions | — |
| Maintenance Required | None after application |
| Aging Resistance | Yes |
Precision-cut to match the rear bumper and door cup contours of the Tiguan MQB, ensuring seamless coverage with no trimming required.
Transparent, untextured film protects the paint from daily scuffs and scratches while remaining virtually invisible on the vehicle surface.
Self-adhesive backing allows for straightforward DIY application with no special tools; professional installation is also an option for best results.
Compatible Aftermarket Alternatives
The following aftermarket parts are confirmed direct equivalents for OEM 5NL-061-193, cross-referenced from major manufacturer catalogs.
| Manufacturer | Part Number | Notes | Dimensions (mm) |
|---|---|---|---|
| 3M | 3M Paint Protection Film (Custom Cut — Tiguan Rear Bumper & Door Cups) | Industry-leading aftermarket PPF with self-healing properties; requires professional cutting and installation for OEM fitment. Recommended | — |
| XPEL | XPEL Ultimate Plus — Tiguan Rear Bumper & Door Cup Kit | Premium self-healing urethane film; available as a pre-cut kit for the Tiguan through XPEL's DAP database. | — |
| LLumar | LLumar PPF Pre-Cut Kit — VW Tiguan Rear Bumper | Durable aftermarket option with UV resistance; pre-cut patterns available for MQB Tiguan models. | — |
| SunTek | SunTek Ultra Paint Protection Film — Tiguan Rear Bumper Kit | Competitive aftermarket PPF with hydrophobic coating; pre-cut kits available for 2018–2021 Tiguan. | — |
Always verify fitment against your VIN before ordering.
How to Replace the Rear Bumper And Door Cup Paint Protection
Installing the 5NL061193 paint protection film is a straightforward process when the work surface is properly prepared. The self-adhesive backing requires a clean, grease-free surface for optimal adhesion. Follow these steps for best results; professional installation is recommended if you are unfamiliar with film application.
-
Gather Supplies
Collect isopropyl alcohol (70%+), a lint-free microfiber cloth, a soft squeegee or credit card wrapped in cloth, and the 5NL061193 film kit before beginning.
-
Clean the Application Areas
Thoroughly wash and degrease the rear bumper loading edge and all door handle cup areas using isopropyl alcohol and a lint-free cloth. Ensure no wax, grease, or dirt remains on the surface.
-
Dry the Surface
Allow the cleaned surfaces to dry completely. Any residual moisture can prevent proper adhesion and cause lifting edges.
-
Position the Film
Carefully peel the film backing and align each piece with its corresponding area — rear bumper or door cup — before pressing it down. Use the pre-cut edges as alignment guides.
-
Apply and Smooth
Working from the center outward, press the film firmly onto the surface using a soft squeegee or cloth-wrapped card to remove air bubbles and wrinkles.
-
Press Edges Firmly
Pay special attention to the film edges and corners, pressing them firmly to ensure full contact with the paint surface and prevent future lifting.
-
Allow Adhesive to Cure
Allow the adhesive to fully bond by avoiding washing the vehicle or exposing it to heavy moisture for at least 24–48 hours after installation.
-
Inspect the Installation
After curing, inspect all edges and film surfaces for any lifting, bubbles, or misalignment. Press down any minor edge lifts immediately if found.
Signs of a Worn Part
-
Visible Scratches or Scuffs on Film
Surface scratches or scuff marks appearing on the film indicate the protective layer has absorbed damage and may need replacement to continue protecting the paint underneath.
-
Peeling or Lifting Edges
Edges of the film that are peeling away from the paint surface indicate adhesive failure, allowing dirt and moisture to become trapped beneath the film.
-
Discoloration or Yellowing
Yellowing or cloudy discoloration of the transparent film signals UV degradation or aging of the film material, reducing its clarity and protective effectiveness.
-
Reduced Adhesion / Film Detachment
Sections of the film coming away from the surface entirely expose the underlying paint to direct contact with environmental hazards and abrasion.
-
Bubbling Beneath the Film
Bubbles or blistering between the film and paint surface can indicate moisture intrusion or adhesive breakdown, requiring the film to be removed and replaced.
Replacement Intervals
This paint protection film has no fixed manufacturer replacement interval. Replace when visible damage, peeling, yellowing, or reduced adhesion is observed. Proactive replacement preserves the paint underneath.
Frequently Asked Questions
Is part number 5NL061193 compatible with my Volkswagen Tiguan?
This part is specifically designed for the Volkswagen Tiguan MQB platform, model years 2018–2021, with the 2.0T Gen3 engine in both 4Motion AWD and FWD configurations. Always verify your exact model year and build before ordering.
Does the film change the appearance of my vehicle's paint?
No. The 5NL061193 is a clear, untextured transparent film that is virtually invisible once applied. It preserves the factory paint color and finish without altering the vehicle's appearance.
Can I install this paint protection film myself, or do I need a professional?
The self-adhesive backing makes DIY installation possible with careful preparation. However, professional installation is recommended for first-time installers to avoid bubbles, misalignment, or edge lifting that can shorten the film's lifespan.
How long does the 5NL061193 paint protection film last?
There is no fixed manufacturer replacement interval. The film should be inspected annually and replaced when signs of peeling, yellowing, discoloration, bubbling, or reduced adhesion appear. Longevity depends on environmental exposure and maintenance.
Are there aftermarket alternatives to the OEM 5NL061193 film?
Yes. Brands such as 3M, XPEL, LLumar, and SunTek offer pre-cut paint protection film kits compatible with the Tiguan's rear bumper and door cup areas. The OEM part ensures a guaranteed fit, while premium aftermarket options like 3M or XPEL may offer additional self-healing properties.
What areas of the vehicle does this film protect?

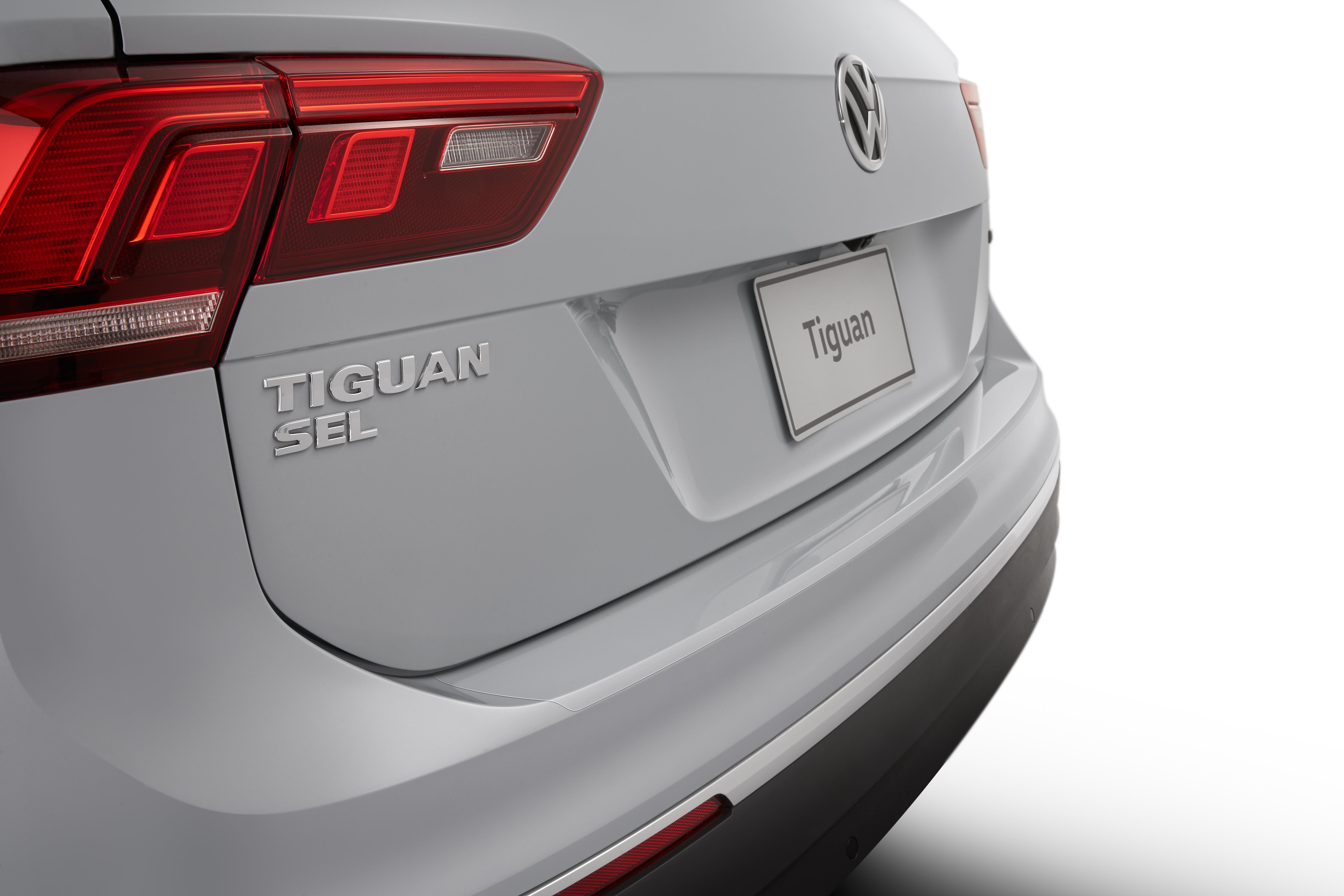

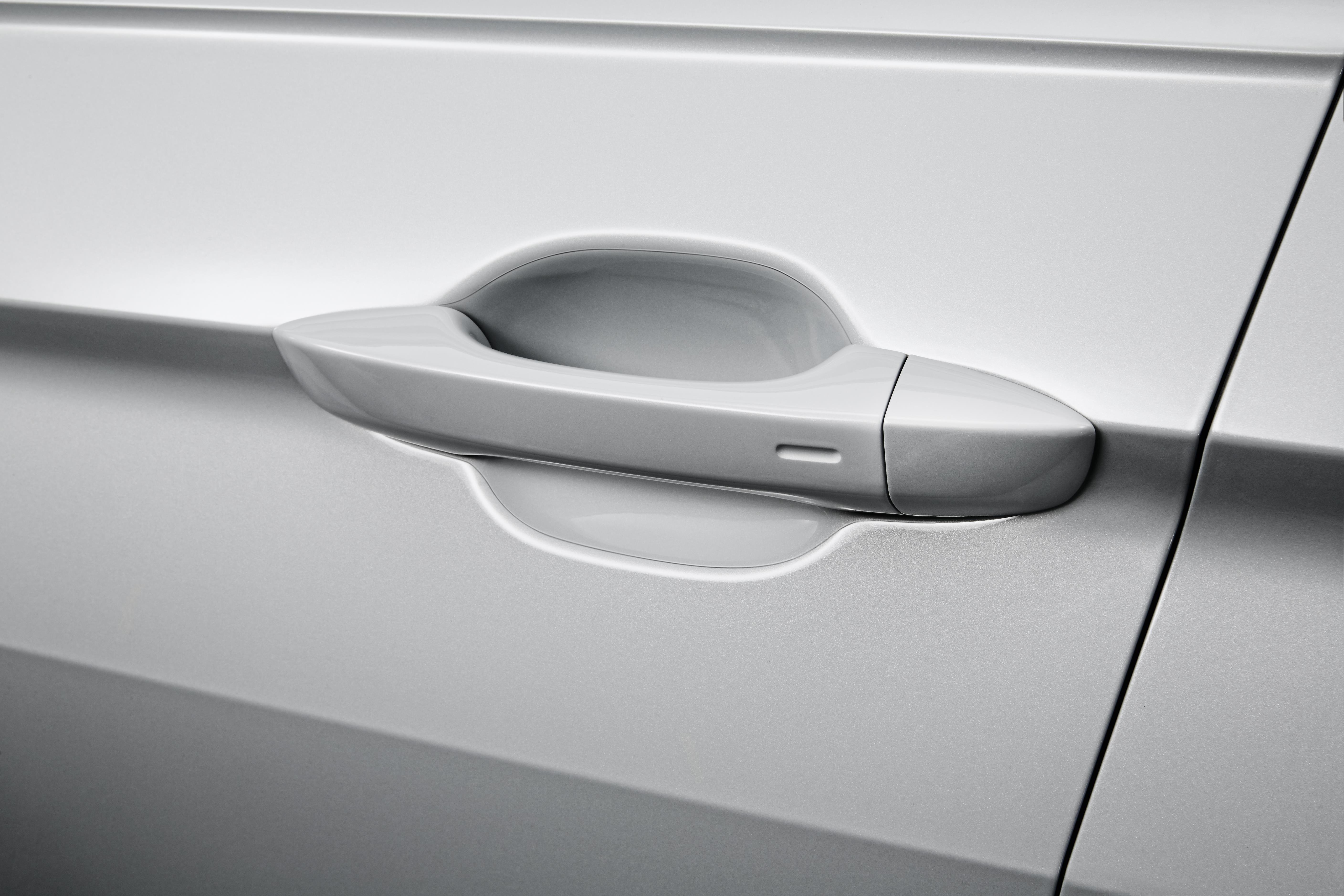

The 5NL061193 kit covers two high-wear areas: the rear bumper loading edge — the horizontal strip most prone to scratches from luggage and cargo — and the door handle cup recesses, which are prone to fingernail and key scuffs during daily use.
