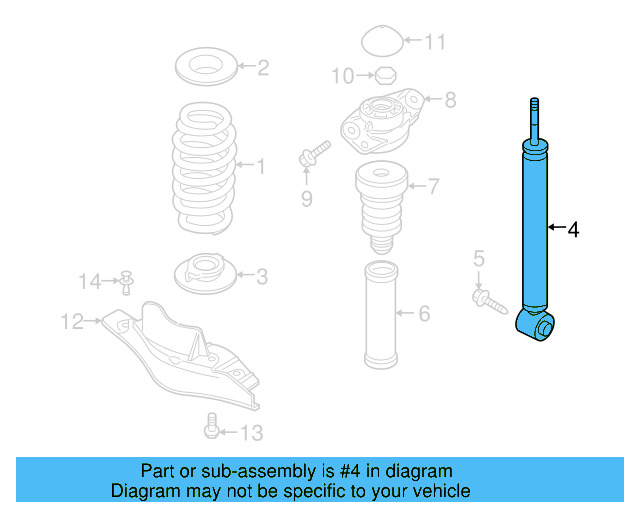

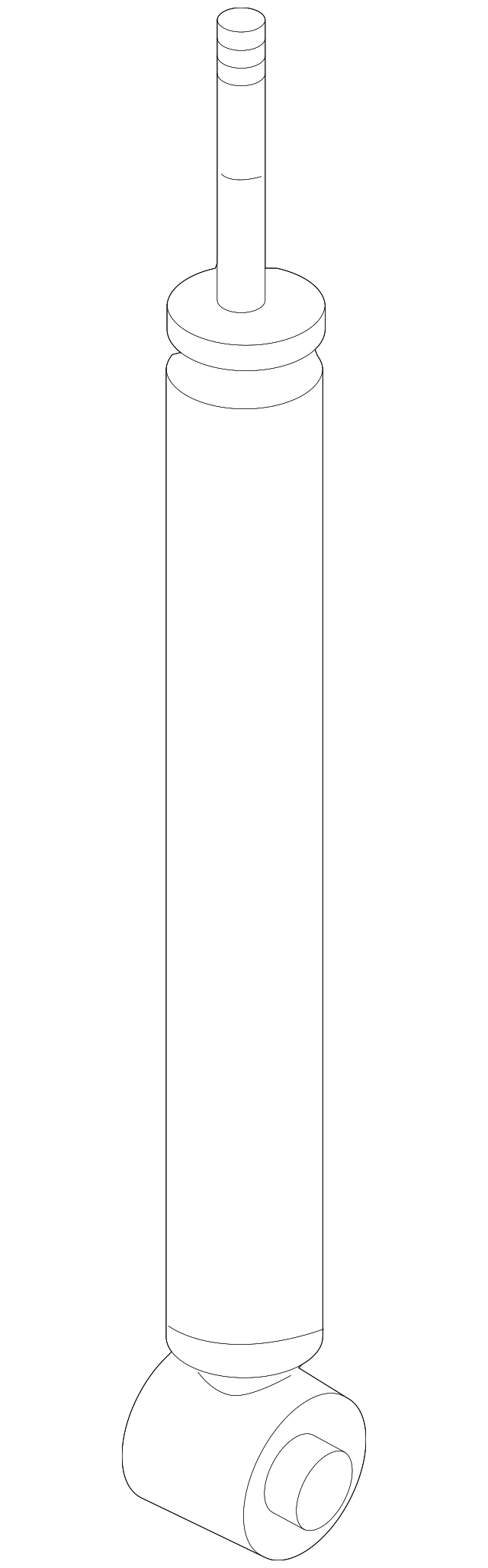

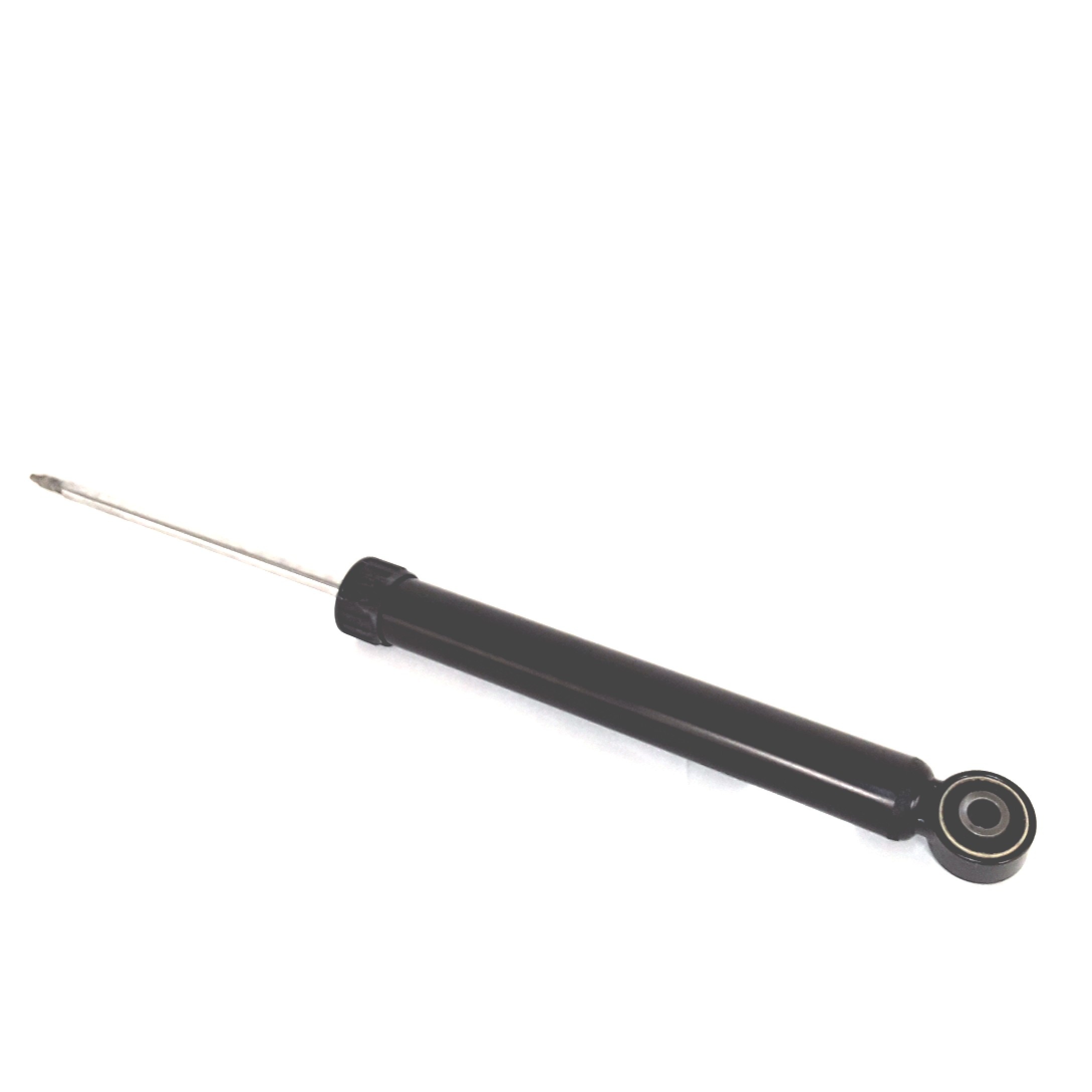

Shock Absorber 5N0-513-049-AP
Доступно в магазинах 14 предложений
Совместимость с автомобилями 27 автомобилей
Технические характеристики
| Part Number | 5N0513049AP |
|---|---|
| Supersedes | 5N0513049AB |
| Position | Rear |
| Weight | 5.90 lbs (2.68 kg) |
| Compatible Years | 2011–2017 |
| Compatible Model | Volkswagen Tiguan |
| Compatible Engine | 2.0L 4-Cylinder Gasoline |
| Compatible Trims | S, SE, SEL, R-Line, Sport, Wolfsburg Edition |
| Dimensions | — |
| Thread Size | — |
Как заменить Shock Absorber
Replacing the rear shock absorber on a 2011–2017 VW Tiguan is an intermediate-level DIY job requiring basic hand tools, a floor jack, and jack stands. Always consult the VW Tiguan factory service manual for model-specific torque values before beginning.
-
Prepare the Vehicle
Park on a flat, level surface. Engage the parking brake and place wheel chocks in front of the front tires. Gather your tools including a floor jack, jack stands, socket set, and torque wrench.
-
Lift and Secure the Rear
Using a floor jack, raise the rear of the vehicle at the designated jack points. Lower the vehicle onto jack stands positioned at the rear frame rails. Never work under a vehicle supported only by a floor jack.
-
Remove the Rear Wheel
Remove the lug nuts and pull the rear wheel off to expose the shock absorber and surrounding suspension components.
-
Disconnect the Lower Mount
Locate the lower shock absorber mounting bolt where it attaches to the rear axle or control arm. Remove the bolt and free the lower end of the shock absorber.
-
Disconnect the Upper Mount
Access the upper mounting bolt, typically located in the wheel well or trunk area depending on configuration. Remove the bolt and fully extract the old shock absorber from the vehicle.
-
Install the New Shock Absorber
Position the new 5N0513049AP shock absorber in place. Hand-thread the upper mount bolt first, then the lower mount bolt. Torque both bolts to the specifications listed in the VW Tiguan factory service manual.
-
Reinstall the Wheel
Remount the rear wheel and hand-tighten the lug nuts in a star pattern. Lower the vehicle off the jack stands and torque the lug nuts to specification on the ground.
-
Test and Verify
Take the vehicle for a slow test drive in a safe area. Verify there are no unusual noises, the ride height appears normal, and the rear end feels stable over bumps before returning to normal driving.
Признаки износа детали
-
Excessive Bouncing
The vehicle continues to bounce repeatedly after passing over a bump or dip instead of settling quickly — a classic sign of worn damping.
-
Visible Fluid Leak
Oily residue or streaking on the shock absorber body indicates a failed seal, meaning the unit has lost hydraulic damping fluid and must be replaced.
-
Poor Handling and Instability
Reduced cornering stability, body sway during lane changes, or a vague, disconnected feeling during braking can all point to rear shock absorber failure.
-
Uneven Rear Tire Wear
Cupping or scalloping patterns on rear tire tread indicate the tire is repeatedly losing and regaining road contact due to insufficient damping control.
-
Clunking or Knocking Noises
Audible clunks or knocks from the rear suspension over bumps or rough roads suggest worn shock absorber mounts, internals, or both.
Периодичность замены
Volkswagen does not publish a mandatory mileage-based replacement interval for shock absorbers. Replacement should be driven by inspection results, observed symptoms, or if the vehicle exhibits handling or ride quality degradation. Many technicians recommend proactive replacement around 50,000–70,000 miles as a general guideline.
Часто задаваемые вопросы
What vehicles does part number 5N0513049AP fit?
This rear shock absorber fits 2011–2017 Volkswagen Tiguan models equipped with the 2.0L 4-cylinder gasoline engine, across S, SE, SEL, R-Line, Sport, and Wolfsburg Edition trims. Always confirm fitment using your vehicle's VIN before ordering.
Does 5N0513049AP replace 5N0513049AB?
Yes. Part number 5N0513049AP is the current OEM revision and directly supersedes the earlier 5N0513049AB. If you find the AB number in old stock, the AP is the preferred and up-to-date replacement.
Should I replace both rear shock absorbers at the same time?
Yes. It is strongly recommended to replace both rear shock absorbers as a pair. Replacing only one side creates an imbalance in damping force across the rear axle, which can negatively affect handling, stability, and tire wear.
Will this part fit both FWD and AWD (4MOTION) Tiguan models?
Compatibility can vary between FWD and 4MOTION drivetrain configurations. Always verify your specific drivetrain and suspension type (standard vs. sport) against the part's compatibility list or confirm with your VW dealer before purchasing.
Is the Bilstein B4 19-170732 a good alternative to the OEM part?
Yes. The Bilstein B4 (19-170732) is an OE-replacement-grade unit designed to match factory damping characteristics and is considered the top aftermarket alternative to this OEM part. The Bilstein B6 (24-146944) is also available for drivers seeking a firmer, more performance-oriented feel.
How do I know if my rear shock absorber needs replacement?
Common signs include the vehicle bouncing excessively after bumps, visible oil leaking from the shock body, clunking noises from the rear suspension, poor cornering stability, or cupped/scalloped patterns on rear tire tread. Have the unit inspected by a technician if any of these symptoms are present.
