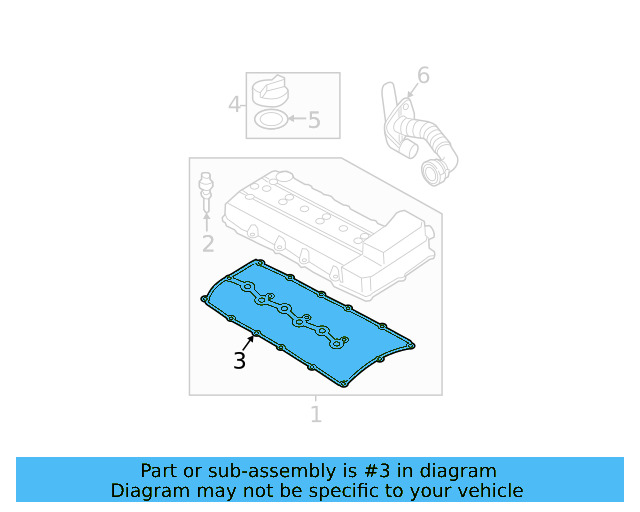

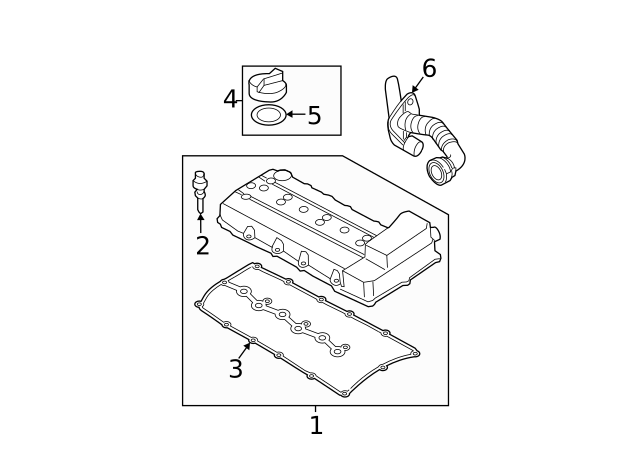

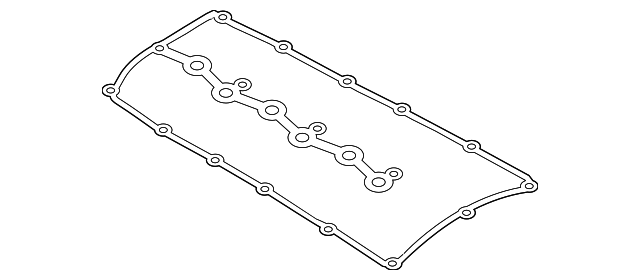

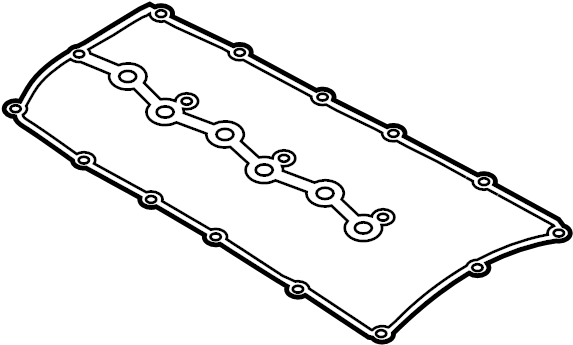

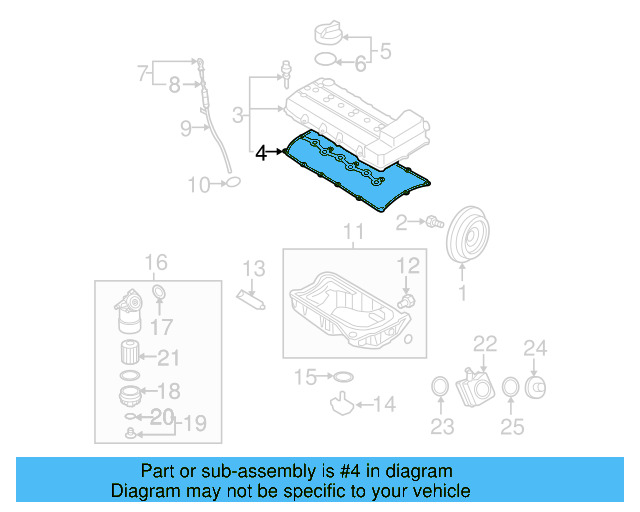

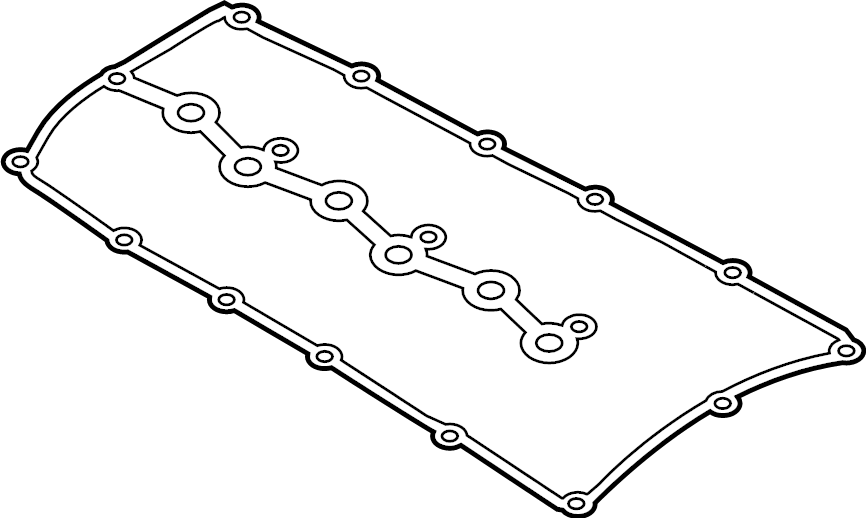

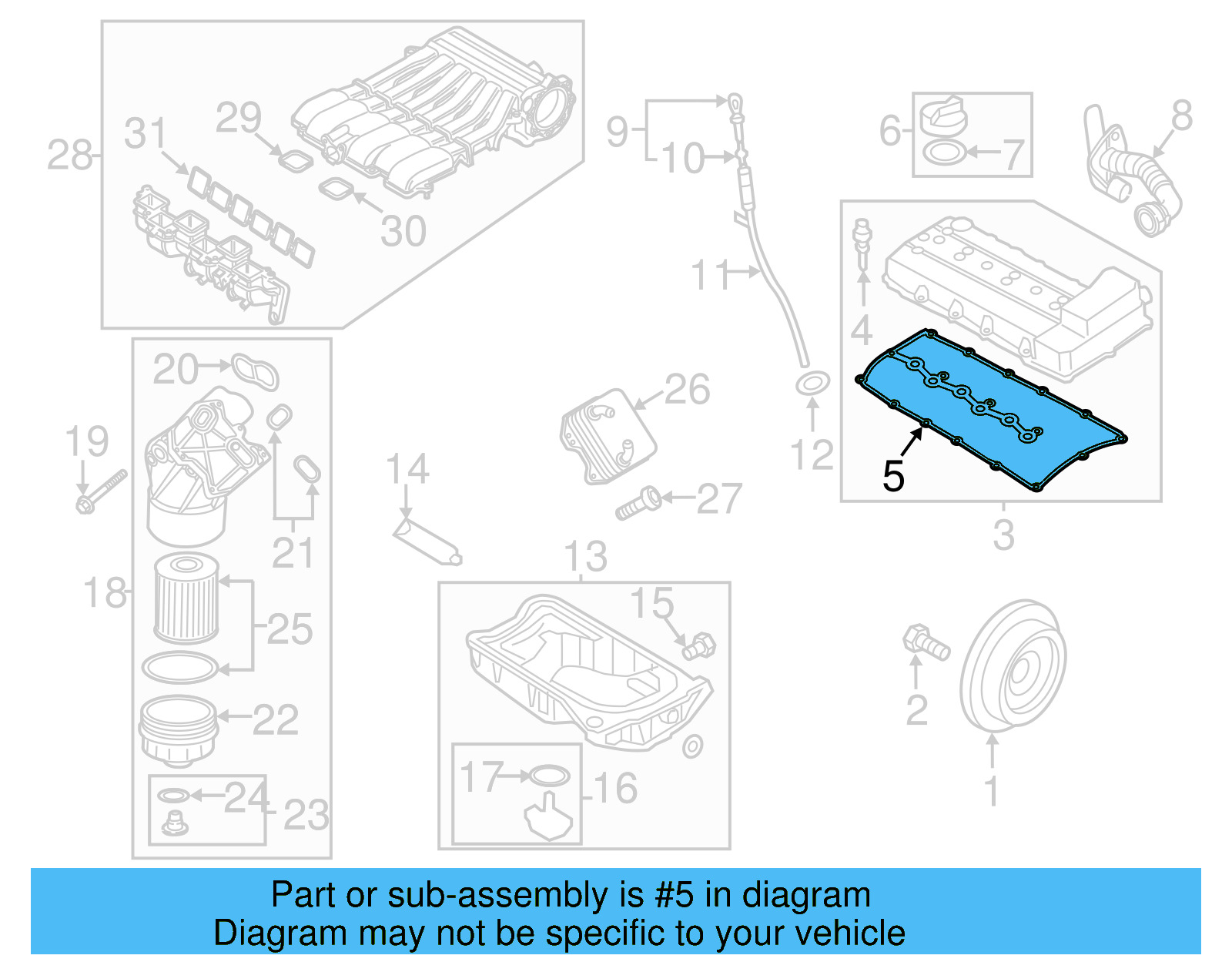

Valve Cover Gasket 03H-103-483-E
Dostępne w sklepach 14 ofert
Dopasowanie do pojazdu 106 pojazdów
Specyfikacja techniczna
| OEM Part Number | 03H 103 483 E |
|---|---|
| Material | ACM (Polyacrylate) Rubber |
| Includes Spark Plug Tube Seals | Yes |
| Engine Application | 3.6L V6 (VR6) |
| Brand Group | Volkswagen Group |
| Compatible Brands | VW, Audi, SEAT, Škoda, Porsche, Cupra |
| Dimensions | — |
| Replacement Type | As-needed / on symptom or inspection |
| Position | Valve Cover to Cylinder Head Interface |
Jak wymienić Valve Cover Gasket
Replacing the valve cover gasket on a Volkswagen Group 3.6L V6 engine requires basic hand tools, a torque wrench, and careful attention to torque specifications and mating surface cleanliness. Allow the engine to cool completely before beginning work. Consult the vehicle's factory service manual for model-specific torque values and any additional procedures.
-
Prepare the Vehicle
Allow the engine to cool fully. Disconnect the negative battery terminal to prevent accidental starting. Gather all necessary tools including a torque wrench, socket set, gasket scraper, and cleaning solvent.
-
Remove Obstructing Components
Remove the engine cover, ignition coils, and any wiring harnesses or hoses that block access to the valve cover. Label or photograph connectors before removal to aid reassembly.
-
Unbolt and Remove the Valve Cover
Remove all valve cover bolts in a crossing pattern to relieve pressure evenly. Carefully lift the valve cover straight up to avoid damaging the mating surface or disturbing internal components.
-
Clean the Mating Surfaces
Thoroughly remove all traces of the old gasket material from both the valve cover and the cylinder head mating surfaces using a plastic scraper and appropriate cleaning solvent. Surfaces must be clean, dry, and free of oil before installing the new gasket.
-
Install the New Gasket and Spark Plug Tube Seals
Seat the new 03H103483E gasket into the valve cover groove, confirming it is properly aligned around the entire perimeter. Install the new spark plug tube seals included in the kit.
-
Reinstall the Valve Cover
Lower the valve cover carefully onto the cylinder head. Hand-thread all bolts before torquing. Tighten the bolts to the manufacturer's specified torque value in a crossing pattern, working from the center outward.
-
Reassemble and Test
Reinstall ignition coils, wiring harnesses, and engine cover in reverse order of removal. Reconnect the battery, start the engine, and inspect the valve cover area for any signs of oil leakage. Check the oil level after the test run.
Oznaki zużycia części
-
Oil Leaking Around Valve Cover
Visible oil seeping or pooling along the edges of the valve cover or dripping onto the exhaust manifold is the most direct indicator of a failed valve cover gasket.
-
Burning Oil Smell
Oil leaking onto hot engine components such as the exhaust manifold burns off and produces a distinctive acrid smell, often noticeable inside the cabin through the ventilation system.
-
Engine Misfires
If the spark plug tube seals fail alongside the main gasket, oil can flood into the spark plug wells and foul the plugs, causing cylinder misfires and rough idle.
-
Decreased Engine Performance
Oil-fouled spark plugs resulting from a leaking valve cover gasket can reduce combustion efficiency, leading to sluggish throttle response, reduced power, and increased fuel consumption.
-
Oil in Spark Plug Wells
During a tune-up or coil inspection, finding engine oil pooled inside one or more spark plug wells is a clear sign that the spark plug tube seals within the valve cover gasket assembly have failed.
Częstotliwość wymiany
Volkswagen Group does not publish a fixed mileage interval for valve cover gasket replacement. Service is driven by inspection findings — oil seepage, burning smell, or oil in plug wells. Many technicians proactively replace the gasket when performing related work such as ignition coil or timing chain service.
Najczęściej zadawane pytania
Is part number 03H103483E the same for both the left and right bank on the 3.6L V6?
The 3.6L VR6 engine uses a single cylinder bank design with one valve cover, so only one gasket kit (03H103483E) is required per engine. Always confirm with your VIN before ordering.
Will this OEM part number fit both VW and Audi 3.6L V6 applications?
Yes. The part number 03H 103 483 E is shared across Volkswagen Group brands including VW, Audi, SEAT, Škoda, Porsche, and Cupra for the 3.6L V6 engine. However, always verify against your specific vehicle's VIN and engine code, as production dates can affect fitment.
Is the Elring Klinger aftermarket version as good as the Genuine VW/Audi part?
Elring Klinger is an OEM supplier to Volkswagen Group and manufactures gaskets to the same specifications as the Genuine parts. For most owners, the Elring Klinger version offers equivalent quality at a lower price point and is the recommended aftermarket alternative.
Do I need any special tools to replace this valve cover gasket?
A standard socket set and a calibrated torque wrench are the most critical tools. You will also need a plastic scraper for cleaning mating surfaces. No specialized VW dealer tools are typically required for this job on the 3.6L V6.
Can I drive with a leaking valve cover gasket?
Short distances are possible if the leak is minor and the oil level is monitored closely, but continued driving is not recommended. Oil dripping onto the exhaust creates a fire risk, and oil intrusion into spark plug wells can cause misfires and catalyst damage. Address the repair promptly.
How do I confirm this is the correct part number for my specific vehicle?
Use your vehicle's 17-digit VIN to look up fitment on an authorized VW or Audi parts portal, or consult an official dealer parts catalog. The engine code stamped on the block can also be cross-referenced against the compatibility list covering model years such as VW Atlas 2018–2023, VW Touareg 2007–2017, and Audi Q7 2007–2010 with 3.6L V6 engines.
